M-AUDIO M-Track DUO Portable Recording Interface, 2 Inputs/2 Outputs, Compatible with Mac, PC, and iOS, with Two Combo Crystal Preamps

Description

Chemicals of concern: None
Built-in battery: No
Package: Yes
Communication: Wired
Transducer: sound card
Use: sound card
Style: Sound Card
Brand Name: M-audio

Clear audio in a compact design

The M-Track Duo is the best-in-class portable recording interface. It offers 48 kHz audio resolution in a compact, easy-to-use format, making it ideal for music production on Mac, PC, and iOS devices. This versatile interface is ideal for recording any kind of sound source and features two combo crystal preamps with phantom power, making it compatible with any microphone. Plus, there’s a dedicated switch for selecting line-level or instrument-level input, making it ideal for connecting a digital piano, drum machine, or other stereo 1/4-inch line-level device, as well as providing an ideal signal for DI guitar or bass. The M-Track Duo is fully USB-powered, making it portable and perfect for people on the go. Just throw it in your bag, grab your laptop, and create your next podcast, song, or mix wherever you are.

Direct monitoring and headphone connection

M-Track Duo provides zero-latency monitoring of mic, line, or instrument input signals via both the main stereo 1/4″ output and the stereo 1/4″ headphone output. A USB/Direct switch balances direct input and playback from your computer software, making it easy to record new parts or add parts to an existing composition.

Start recording immediately

The M-Track Duo comes with a complete software package that gives you everything you need to get started right out of the box, including the excellent Digital Audio Workstation (DAW) – MPC Beats. This DAW makes it easy and fun to create professional-sounding podcasts, music, or professional-sounding beat productions on your Mac or PC.

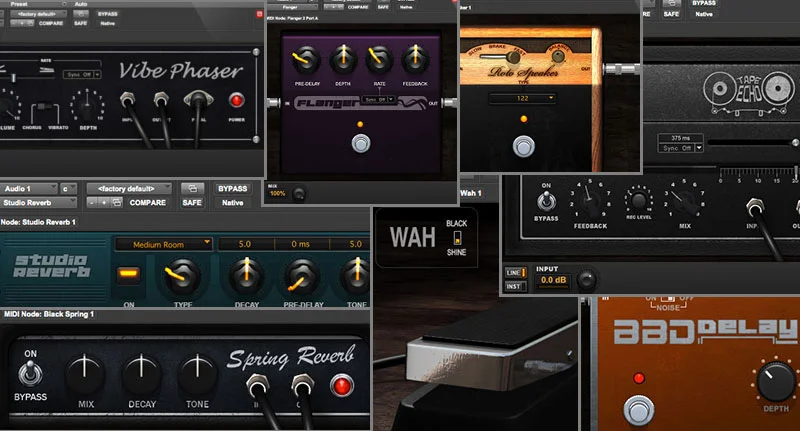

But that’s not all. It includes additional perks to help podcasters, guitarists, and producers. First on the list are 80 effects plug-ins from MPC. This exclusive and diverse collection has everything you need for creative production, mixing, and mastering, including reverbs, equalizers, delays, filters, and more.

World-class virtual instruments – TubeSynth, Electric, Bassline

The AIR TubeSynth plug-in emulates the sounds of vintage analog polyphonic synthesizers. This vast collection of synthesizer presets is brimming with warm pads, brass synths, and more.

The AIR Electric plug-in is a complete electronic piano collection on your MPC. Choose from a wide collection of keyboards, including Rhodes, Wurlitzers, and FM keyboards. A dedicated control section gives you detailed virtual control over your keyboard’s pickups, envelopes, bell and noise settings.

The AIR Bassline plug-in emulates the sound of classic monophonic synthesizers. Create your own synth patches with the integrated AIR effects section.

The new standard in guitar amp modeling software

ReValver includes ValveKing® & Custom Lite Amp Module, 3 x Cabs, 3 x Mics (with multiple selectable positions), and 3 x Effects.

Crystal™ preamp, Pristine A/D converter, premium components

Our engineers designed the Crystal preamp to provide a transparent, low-noise preamp that ensures the best sound from your microphone and captures your performance exactly as intended. The M-Track Duo incorporates a pristine A/D converter for digital audio with an explosive dynamic range that captures every nuance and subtlety of your performance.

Key Features

2-Channel USB Recording Interface for Mac and PC
(2) Excellent audio quality with crystal preamp combo input
Dedicated switch to enable any microphone, instrument, or line-level device
+48V phantom power for connecting studio condenser microphones
Stereo 1/4″ outputs, 1/4″ headphone output with independent level control
USB/Direct Mono/Direct Stereo switch for stereo or mono monitoring of mic, line, or instrument inputs
Software bundle includes MPC Beats, AIR Music Tech Electric, Bassline, TubeSynth, Revalver guitar amp plug-ins, and 80 AIR plug-in effects

Technical specifications

Microphone input (balanced XLR)
Frequency response	20Hz～20kHz（+0.1dB）
signal-to-noise ratio	109dB（A-weighted）
THD+ N	0.003% (min) gain, 0 dBu output, A-weighted
Preamp EIN	-128 dBu (max gain, 40 Ω source, A-weighted)
Gain Range	Direct Mono: 0 dB to +54 dB Direct Stereo: 6 dB to +60 dB

Line input (balanced 1/4 inch [6.35 mm] TRS)
Frequency response	20Hz～20kHz（+0.1dB）
sensitivity	-43dBu
THD (Total Harmonic Distortion)	0.002% (min gain, 0 dBu output, A-weighted)
Gain Range	Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB

Instrument input (unbalanced 1/4 inch [6.35 mm] TS)
Frequency response	20Hz～20kHz（+0.1dB）
THD+ N	0.005% (min gain, 0 dBu output, A-weighted)
Input Impedance	1 megohm
Gain Range	Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB

Main outputs, L and R (impedance-balanced 1/4-inch [6.35 mm] TRS)
Frequency response	20Hz～20kHz（+0.1dB）
signal-to-noise ratio	109dB（A-weighted）
THD (Total Harmonic Distortion)	0.002% (0 dBu output, A-weighted)
Maximum Output Level	+4 decibels

Headphone output (1/4 inch [6.35 mm] TRS)
POWER	60mW/Ch、32Ω
Frequency response	20Hz～20kHz（+0.5dB）
THD+ N	0.02% (A-weighted)
signal-to-noise ratio	100dB（A-weighted）

What’s in the box

M Track Duo

USB-B to USB-A cable

Software download card

User guide

Safety and Warranty Manual
